Tecco System
Send an e-mail enquiry to Mountain Rockfall Protection INC
10 USD
The TECCO system consists of TECCO steel wire mesh, anchors, and anchor bearing plate, border and suture ropes and net connection clips.

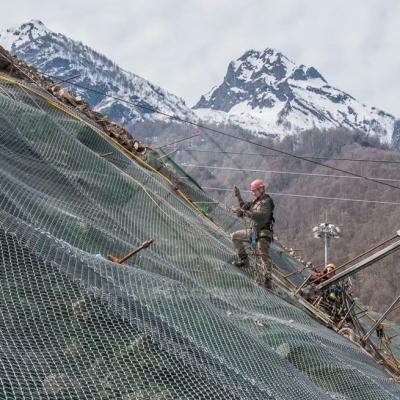

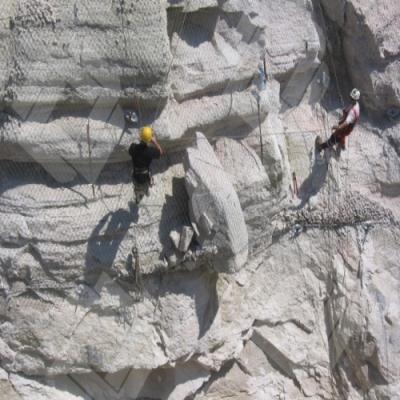

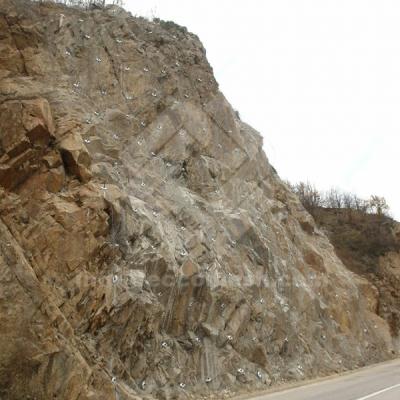

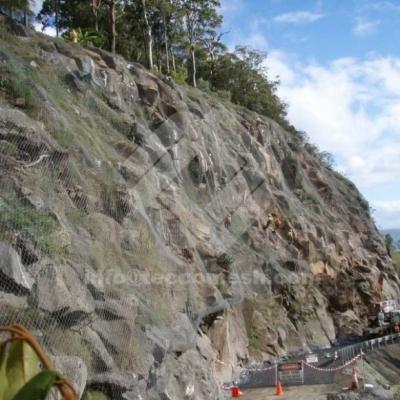

The TECCO System G65/3 is made using 3mm high-tensile steel wire. And with anchors the TECCO steel wire mesh covers over the slope tension and firmly. The TECCO erosion blanket is firmly fixed to slopes and features a finer mesh to ensure that small rocks can be held in place in addition to large boulders.
Standard Specification of TECCO System G65/3
Wire diameter:3mm
Hole Inscribed circle diameter: 65mm (+/- 5%) Mesh Size: 83*143mm
Roll Size: 3.5m x 10m/20m/30m Mesh Ends Knotted
Standard Specification of TECCO System G65/4
Wire diameter:4mm
Hole Inscribed circle diameter: 65mm (+/- 5%) Mesh Size: 83*138mm
Roll Size: 3.5m x 10m/20m/30m Mesh Ends Knotted

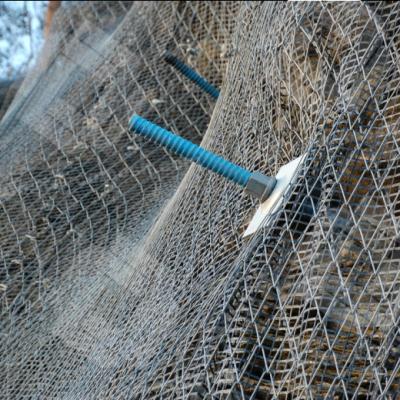

Anchors
Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -5m
Anchor bearing plate: 320mm x 170/180mm
Rope
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
Benefits
Compared with other active protection systems:
Only 60%-80% cost compare with the traditional wire rope system.
Fast and easy installation
The TECCO system consists of TECCO steel wire mesh, anchors, and anchor bearing plate, border and suture ropes and net connection clips.
