TECCO Slope Protection Mesh
Send an e-mail enquiry to Mountain Rockfall Protection INC
10 USD
Slope Protection Mesh TECCO G65/3 G65/4 G80/4 G80/3 G45/2
Slope Protection Mesh has high tensile strength to bear the attacks.
Slope Protection Mesh has high tensile strength to bear the attacks. Slope Protection Mesh is the mainly part of the Active Slope Protection Mesh, which is made of high tensile strength steel wire or stainless steel wire, with wire tensile strength 1770Mpa, 1370Mpa or 990Mpa and the mesh types of the high tensile strength steel mesh are in the shape of Rhomboid Hole and
Square Hole, the normally specifications including G65/3 G65/4 G80/4 G80/3 G45/2 inscribed circle diameter 65mm, 80mm, 45mm, 40mm, 60mm, 55mm etc.

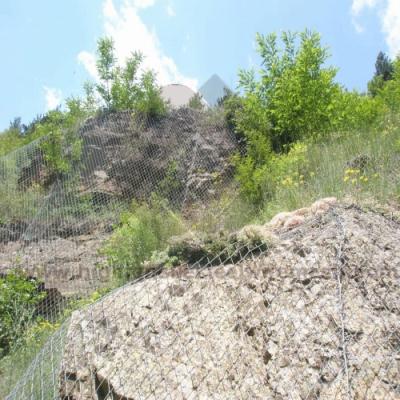

Slope Ptotection Mesh has better harness and tensile strength to bear the big attack of landslide, rockfall, avalanche and debris flow. The High tensile steel wire mesh is mainly used to secure loose, blocky rocks, rock spurs and unstable rock formations. And the high tensile steel wire mesh has good adaptability, which can be used on any surface even on the highly irregular surface structures.
Slope Protection Mesh
-Wire Materials:
1.) Zinc 95% Aluminum 5%-10% Alloy Steel Wire (Zinc Coating ≥150gr/m2), Wire Resistance ≥1770Mpa, Mesh Ending Knotted ( ≥1.5laps )
2.) Stainless Steel 304 Wire, Wire Resistance ≥1770Mpa, Mesh Ending Knotted ( ≥1.5laps )
3.) Heavily Zinc Coating Steel Wire （Zinc Coating ≥200gr/m2）, Wire Resistance ≥1370Mpa, Mesh Ending Knotted (≥1.5 laps )
4.) Heavily Zinc Coating Steel Wire （Zinc Coating ≥200gr/m2）, Wire Resistance ≥900Mpa, Mesh Ending Knotted ( ≥1.5 laps )
Other wire mateials are also available.
-Specifications：
Wire Diameter: 3.00mm, 4.0mm, 2.0mm, 2.2mm，4.4mm etc
Mesh Sizes: 83*143mm, 102*177mm, 62*95mm, 65*65mm, 60*60mm, 55*55mm, 50*50mm etc
Mesh Types: Rhomboid Hole or Square Hole.
Mesh Height: 10mm, 30mm, etc
Mesh Ending: Knotted Edge, Knuckle Edge, Twist Edge, Ferrule Edge etc.
Roll Width: 3.5m, 2.9m, 2.5m, 1.0m etc
Roll Length: 10m, 20m, 30m etc
Tecco Slope Protection Mesh has high tensile strength to bear the attacks.
