High Tensile Rockfall Mesh
Send an e-mail enquiry to Mountain Rockfall Protection INC
10 USD

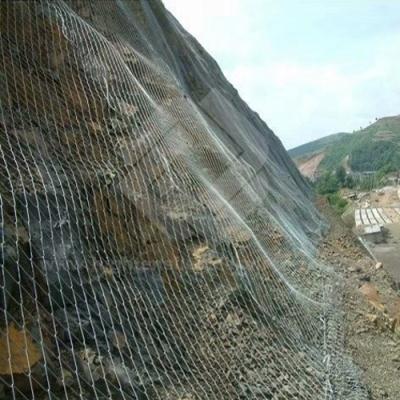

HIGH TENSILE ROCKFALL MESH is manufactured from a 3 or 4mm high-tensile steel wire with a tensile strength of 1,770N/mm². Together with a pattern of bolting or anchoring, it stabilises steep, unconsolidated rock and rock slopes.
Main Components: High-tensile steel wire,Steel bar anchor or bolting, Claw type special anchor plate, Edge rope, oversewed rope or special lock.
Application Area: Soil, strongly weathered slope reinforcement, river bank erosion control, soil and water loss control, Slope greening, etc.
Components
The HIGH TENSILE ROCKFALL MESH system consists of four main components that are carefully coordinated with each other:

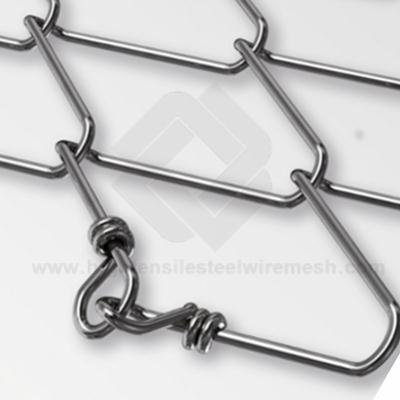

1). HIGH TENSILE ROCKFALL MESH
HIGH TENSILE ROCKFALL MESH is made of high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.

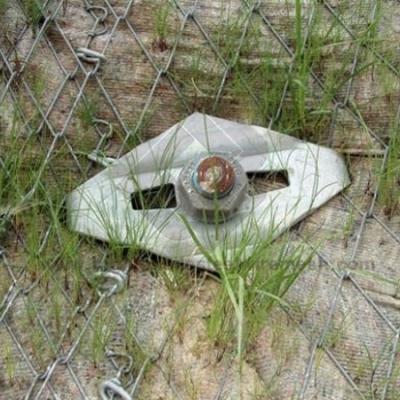

2). HIGH TENSILE ROCKFALL spike plates
Rigid spike plates that are reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the HIGH TENSILE ROCKFALL MESH.These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.The plates are galvanized and have dimensions of 13.0''*7.5"*0.4"(330mm*190mm*10mm).
3). HIGH TENSILE ROCKFALL connection clips
The connection clips high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces.These claw are hot dip galvanized and consist of 0.25"(6mm) thick steel spiral.
4). Soil or rock nails
Adapted to the local soil and rock static requirements, the HIGH TENSILE ROCKFALL MESH can be anchored in accordance with our dimensioning concept with commercial soil or rock nails.The main anchors of the system are installed in a grid typically from 6.6 to 16.4 ft (2.0 to 5.0m)horizontal and vertical spacing.Actual spacing depends upon the results of site analysis and modeling.Anchor consist of commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).Selfdrilling grout injection anchors are also permitted.Additional anchors may also be used to provide added support at boundaries and in low points and hollows.
HIGH TENSILE ROCKFALL MESH is manufactured from a 3 or 4mm high-tensile steel wire with a tensile strength of 1,770N/mm². Together with a pattern of bolting or anchoring, it stabilises steep, unconsolidated rock and rock slopes. Main Components: High-tensile steel wire,Steel bar anchor or bolting, Claw type special anchor plate, Edge rope, oversewed rope or special lock. Application Area: Soil, strongly weathered slope reinforcement, river bank erosion control, soil and water loss control, Slope greening, etc.
