1000 L H RO System - 6000 GPD
Send an e-mail enquiry to 4 U Pure Water (PTY) Ltd HQ

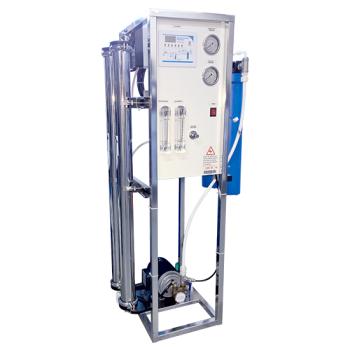

1000 L/H RO System - 6000 GPD
PDFPrintEmail
SPECIFICATION
Capacity: 6000 GPD RO
Membrane: 4 PCS RO
Pump: 3HP Voltage/Hertz: 110V or 220V / 50Hz or 60Hz / Single phase or three phase
Pipe Size: 3/4" Feed, 1/2" Permeate, 1/2" Concentrate, 1/2"
Flush (BSP thread) OPERATING PARAMETERS
Operating Pressure: 180 PSI | Max. Feed TDS
| 1000 PPM Normal Salt Rejection: 99%
| Max. Feed Hardness
| 15 PPM Minimum Salt Rejection: 96%
| Feed pH Range
| 3.0 - 10.0 PPM Operating Temperature: 20 oC - 45 oC
| Free Residual Chlorine
| 0.1 PPM Minimum Feed Pressure: 1.5Kg
| Recovery Rate
| 60% - 75%
6000-gpd-ro-system_350x350-300x300
With shipment Door-to-Door Courier for R 0,00
Total: R 76999,99
1
Ask a question about this product
Description
Sediment Filter:
1 Micron Sediment Filter that removes sediments and protects the system.
High-Pressure Pump:
1HP Motor + Italian made Rotary Vane Pump with flow rate of 1080 Liters/H. High-Pressure Pump: High-quality stainless steel Grundfos Pump for long-life usage.
RO Membrane:
One of the industry's leading brackish water RO elements - Hydranautics ESPA3-4040.
Membrane Housing:
4" x 40" FRP Housing with 300PSI maximum operating pressure.
Pressure Gauges:
Glycerin FiUed Gauges for monitoring the system's operating pressure and pre-litter operating pressures. Low-Pressure Switch: Safety device to protect the pump from running dry when there is insufficient feed water pressure.
Solenoid Valves:
To assist with the on/off functionality of the system and automatic membrane flush. Flow Meters: One Product and One Waste Flow Meters - Enables operator to actually adjust product to waste ratio and monitor system's performance.
Regulator Valve:
One Stainless Steel ANSI 316 Needle Valve - regulates the product to waste ratio (system's recovery).
Micro-Computer Controller:
A specialized controller designed by Puritech for commercial systems with automatic controls and TDS monitors. OPTIONAL FEATURES: Stainless Steel Components: ANSI 304 and 316 can be used with solenoid valves and pumps for brackish water treatment. Concentrate Re-Circulation Automatic Pretreatment Systems Chemical Dosing Pumps
Application: Water Store Spot Free Car Wash Laboratory Electro-Plating Factory Small Bottle Water Filling Plant Other Manufacturing Facilities Brackish Water Desalination
