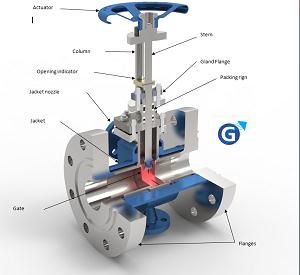

Vortex Series 197 Seated Gate Valve
Send an e-mail enquiry to 3D Industrial
29782.99 ZAR
APPLICATIONVORTEX SERIES 197 SEATED GATE VALVE General use : Water supply, fire protection, irrigation.Maximum working pressure : 16 bar. Maximum temperature : -10°C / +130°C. d1 STANDARDS Detail B (Stem) : Test procedures are established according to standard NF EN 12266-1, NF EN 12266-2, DIN 3230, ISO 5208. Face to face according to standard EN 558-1 serie 15 and DIN 3202 / F5 (long pattern). Connections according to standard EN 1092-2 ISO PN10 and ISO PN16 water treatment GENERAL CHARACTERISTICS - Design in accordance to standard NF EN 1171. - Range : from DN 40 to DN 400 in standard, contact us for other dimensions. - Non rising stem. - Clockwise to close or anti clockwise to close. - No zones of retention. - Low head losses. - Bonnet with easy adaptation for actuator. - Protection with paraffin on.
APPLICATION VORTEX SERIES 197 SEATED GATE VALVE General use : Water supply, fire protection, irrigation.Maximum working pressure : 16 bar. Maximum temperature : -10°C / +130°C. d1 STANDARDS Detail B (Stem) : Test procedures are established according to standard NF EN 12266-1, NF EN
