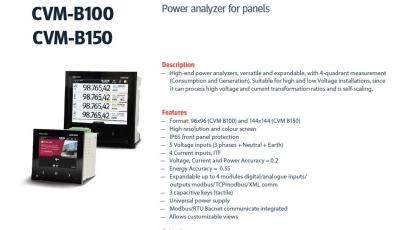

SLIMMEC CVM-B100 CVM-B150
Send an e-mail enquiry to Patton & Cooke
- Format: 96x96 (CVM B100) and 144x144 (CVM B150)
-High resolution and colour screen
-IP65 front panel protection
-5 Voltage inputs (3 phases + Neutral + Earth)
-4 Current inputs, ITF
- Voltage, Current and Power Accuracy = 0.2
- Energy Accuracy = 0.5S
-Expandable up to 4 modules digital/analogue inputs/
outputs modbus/TCPmodbus/XML comm
-3 capacitive keys (tactile)
-Universal power supply
- Modbus/RTU Bacnet communicate integrated
- Allows customizable views
Other features
-Innovative SCV interface (Slide, Choose & View) for a versatile display of
data; the parameters displayed on the screen can be customised
- Electrical parameters: instantaneous, maximum, minimum and demand
- Incremental electrical parameters (energy), hours, costs, emissions
- 3 Tariffs (can be selected via the digital input or RS485 communications)
-Capable of showing costs and KgCO2 emission sources on the
screen, depending on the energy consumed or generated
- 2 Relay outputs for alarms with delay, times, ON and OFF, etc.
-2 Transistor outputs for alarms or impulse generation, with
all possible configuration parameters
-2 digital inputs, with optimal control over the selection of the unit's tariffs or
configurable for monitoring purposes, with RS-485 Modbus communications,
monitoring or logical states of other electromechanical units. (RCCBs
with self-reclosing systems, thermal-magnetic circuit breaker, etc.)
