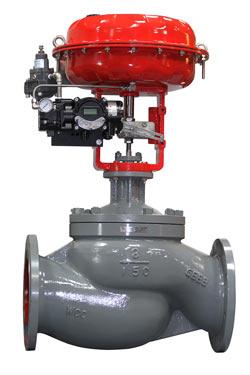

Remy FC409K Heavy Duty Valve
Send an e-mail enquiry to OPC Industrial Supply Company
Flow Direction: Flow to Open or Flow to Close (Pilot & Un-Compressible Fluid)
Max. Fluid Temperature: 1049 °F
Minimum Fluid Temperature: -320 °F
Seat Leakages: ANSI B16.104 Class IV (Soft Seal), Class III (Metal Seal)
Option 1: ANSI B16.104 Class V for Metal Seat Tight Shutoff (only Pilot Type)
Option 2: ANSI B16.104 Class VI for Teflon Soft Seat & Seal (-22 °F ~ 446°F)
Body: High Capacity Globe Cage Guided
Bonnet Type: Stud Bolted
Standard Type: -0.4°F ~ 536°F
Extension Type: 538 °F ~ 1049°F & under -0.4°F
Flow Characteristics: Linear, Equal Percentage, Modified % & Semi-Throttle
Cv Ration: 30:1 (Tendril), 50:1 (Reduced Cage), 100:1 (Full Cage)
Diaphragm actuators enclosed, heavy duty cylinders (spring-cylinder and double-cylinder) available
Applicable for various instruments (positioner, SOV, Limit switch)
