Panel Antenna
Send an e-mail enquiry to Waveboosters PTY LTD
650 ZAR
Works With All Networks 2G/3G/4G/5G DATA

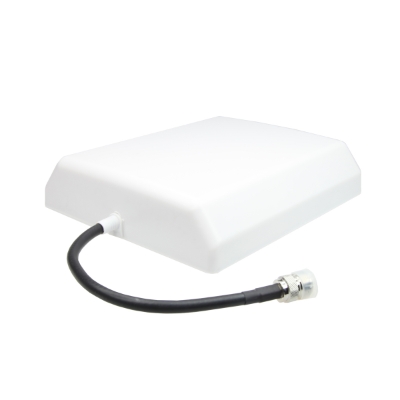

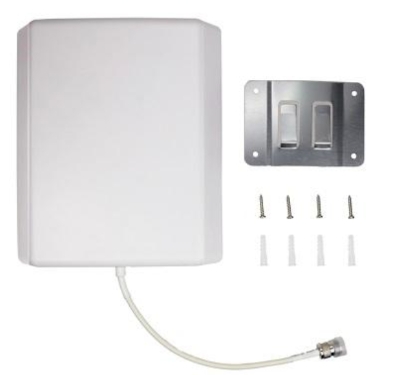

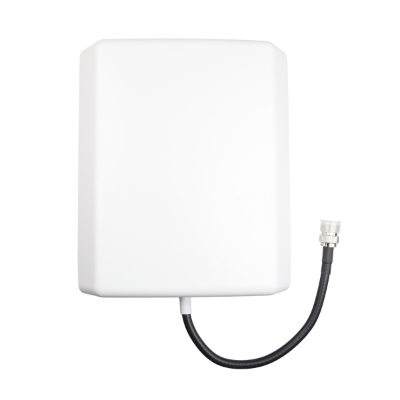

Panel Antenna All Networks 2G/3G/4G/5G DATA This is a high gain panel antenna that can be used for both outdoor and indoor purposes. when using as outdoor it helps to receive mobile phone signals from the network base station into the repeater. As an indoor antenna, it is used to distribute signals from the repeater internally The panel antenna is directional, which means a signal, either way, is distributed in one direction. it is compatible with 2G, 3G, and 4G devices and supports all frequencies within 698-2700 MHz spectrum. KEY FEATURES TECHNICAL SPECIFICATIONS Frequency: GSM 900/1800 Frequency: 3G / 4G 800 ~ 960MHz / 1710 ~ 1880MHz 1920 ~ 2180MHz/2700MHz Gain 7 / 9 dBi VSWR 1:8:1 / 1.5:1 Max Impedance 50 Ohms Termination SMA (F) Horizontal Beam Width 80 Vertical Beam Width 70 Size 255 x 195 x 55 mm Weight 656 grams What's in the box WHATS IN THE BOX 1 x Panel Antenna 1 x Bracket
