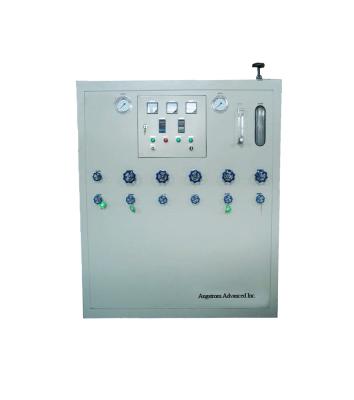

Hydrogen Generating Plant via Pressure Swing Adsorption with Hydrogen Purifying System
Send an e-mail enquiry to Verde LLC
Easy operation, low maintenance, and long operating life.
Contact us for a quote!
Using the principles of Pressure Swing Adsorption (PSA), this device is able to produce high quality hydrogen, and further refine it with a built in purification system. Pressure Swing Adsorption (PSA) is used to separate hydrogen gas from other gases by feeding the gas under a certain pressure. This separation process occurs in an adsorption tower and is advantageous in its low cost, low capacity, minimal maintenance requirements and user-friendly interface. The H2 Purifying System removes oxygen from hydrogen via a catalyst to obtain high purity H2 after adsorption and drying through the dust filter. The system can remove oxygen down to levels of 1ppm. Through one step of purification, the purity of the hydrogen generated can reach between 99.999~99.9999% and the dew point can be lower than -70°C; Through a second purification step, impurities can be lowered down to less than 0.1ppm and dew point can be lowered to -90°C
