Munro Machine and Tool Supplies - Products

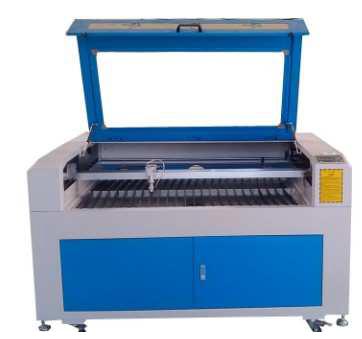

F-L1290 Laser Machine With 80W laser power
Send an e-mail enquiry to Munro Machine and Tool Supplies
68500 ZAR
Model F-L1290
Working area 1200x900mm (3.9x2.9ft)
Laser power 80W, CO2 sealed laser tube,water-cooling
Engraving speed 0-60000mm/min
Cutting speed 0-30000mm/min
Laser Output 1-100%software setting
Resetting positioning accuracy ≤±0.01mm
Power supply 220V/50-60HZ or 110V/50-60HZ
Operating temperature 0 - 45°C
Operating humidity 5 - 95%
Controls system DSP with USB port
Min. shaping character English 1.0 x 1.0mm
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut5.3
Driving system stepper motor
Equipment Dimension (L*W*H) 1700x1300x1000mm
Packing Dimension (L*W*H) 1800x1400x1200mm
Gross Weight 450kg
Applicable
materials
Engrave
anodized metal, acrylic, perspex, crystal, wood, stone, rubber, leather,
glass, garment, paper, etc.
Cut acrylic, perspex, wood, rubber, leather, cloth, paper,MDF etc
Standard configuration
(1). 80W laser tube (2).DSP control and USB port (3). Water chiller
(4). Exhaust fan and wind pipe (5). Air pump
(6). Metal-bar worktable (7). Red dot pointer
(8). Tools box and user manual.
Optional parts
(1). Up-down worktable, make the worktable move up and down
automatically, price is USD250.
(2). Rotary device for engraving on cylinder surface. Price is USD200.
Consumable parts
(1). Laser tube, 80W,price is USD 350/piece. (6 months warranty)
(2). Reflect mirror. Price is USD 25/piece.
Focus mirror, price is USD50/piece.
Machine has 3pcs reflect mirrors and 1 pc focus mirror.
Price validity: May.31st,2013 Delivery time: 5-7 workingdays from the date of order Payment term: TT before delivery Package: plywood case Laser equipment F-L1290 combines a fast and accurate laser cutting and engraving. Size of the machine is 1200x900 mm, power of the laser tube is 80 W, which allows you to cut middle thickness material for a pass. What is more,the fine laser dot could get excellent engraving effect. The laser machine is equipped with a control unit with LCD display and keypad, as well as a USB port, it allows to operate the equipment without connecting a computer
