Akaren Chongqing Zhongneng Oil Purifier Manufacture Co.,ltd - Products
Dielectric Strength Insulating oil Tester Transformer oil Tester
Send an e-mail enquiry to Akaren Chongqing Zhongneng Oil Purifier Manufacture Co.,ltd
2000 USD

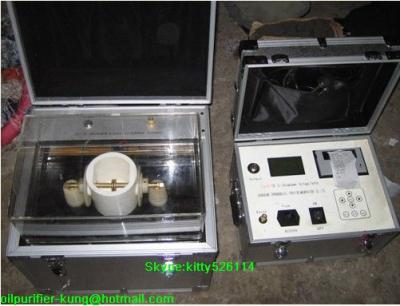

IIJ-II BDV Tester for Insulating Oil/ Dielectric Strength Insulating oil Tester/ Transformer oil Tester
(Contact---Karen Kung
MSN-hotmail: oilpurifier-kung
Yahoo!: karenkung5
Skype: kitty526114
ICQ:no.613960144
Yahoo Messenger: karenkung5 at yahoo.com.cn
Tel:86-23-68681160 Mobile: 86-15023143510
Fax:86-23-86197078
Application:
IIJ automatic tester is designed by IEC156 to test dielectric strength of insulating oil. Adopt industrial single Plate integrated circuit, new model I/O connection, with unique inspection and anti-jamming technology which largely improve its reliability & functionality.
Technology and parameter data
1. Power supply: AC220V +-10% , 50 HZ
2. Output voltage: 0 to 60KV, 80KV, 100KV (100KV should be special designed)
3. Capacity: 1.6KVA, 2.0KVA
4. Speed of Voltage increase: about 2 kva/s
5. Voltage inspection accuracy: 3%
6. Dielectric strength sensitivity : less than 2KV
7. Wave form distortion : less than 3%
8. Time of dielectric strength: less than 10ms
9. Working Environment: Temperature: 0℃~ 40℃, humidity: max relative humidity 85%
10.Storage environment: temperature:-20℃~ 60℃, humidity: max relative humidity 75%
11. Work height: 1500m(If over 1500M, It can be customized)
other supply:
Waste oil purifier, used oil purifier, oil recycling, regenerate oil purifier,
Vacuum Transformer Oil Purifier,
Switch oil filtration,
Turbine oil purifier,
Hydraulic oil purifier,
Diesel oil purifier,
Gear oil purifier,
Fuel oil purifier,
Fire-resistant oil purifier,
light oil purifier,
Insulating oil purifier,
Lube oil Purifier
Insulating oil Tester-BDV/IIJ-II 1. Test Breakinddown Voltage 2. Capacity: 1.6KVA, 2.0KVA 3.Wave form distortion : <3% other
