DB TECHNOLOGIES M2M MS12 PACKAGE
Send an e-mail enquiry to SA Line Array
129927 ZAR
DB TECHNOLOGIES M2M
TECHNICAL DATA
Speaker Type M2M: 2-Way Active Master Line Array Module
Speaker Type M2S: 2-Way Slave Line Array Module
ACOUSTICAL DATA
Frequency Response [-6dB]: 78 – 19.000 Hz
Frequency Response [-10dB]: 68 – 20.000 Hz
Max SPL: 126 dB per unit
HF: 2×1″
Type HF: Neodymium
Voice Coil HF: !”
LF: 2×6.5″
Type LF: Neodymium
Voice Coil LF: 1.5″
Directivity: 90×15°
AMPLIFIER
Amp Technology: Digipro® G3
Amp Class: Class D
RMS Power HF Amp: 200 W (100 W + 100 W)
RMS Power LF Amp: 200 W (100 W + 100 W)
Cooling: Convection
PROCESSOR
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
System Presets: 9 presets (8x HF and Low-Mid corrections and 1x for service use)
Limiter: Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF: 1800 Hz
Slope LF-HF: 24 dB/Octave
INPUT
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Power Supply: 400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket: 1x PowerCon In 1x PowerCon Out
Signal Input M2S: 1 Custom connector
MECHANICS
Housing: Polypropylen PP
Handles: 2x back side
Fittings: Integrated hardware with fast lock mechanics
Splay Angles: 0°- 1,5°- 3°- 4,5° – 6°- 8°- 10°- 12,5°- 15°
Width: 460 mm (18.1 in)
Height: 190 mm (7.5 in)
Depth: 345 mm (13.6 in)
Weight M2M: 7.6 kg (16.8 lbs)
Weight M2S: 7.1 kg (15.7 lbs)
DB TECHNOLOGIES MS12
TECHNICAL DATA
Speaker Type: Active bass reflex flyable subwoofer
ACOUSTICAL DATA
Frequency Response [-6dB]: 45 – 140 Hz
Frequency Response [-10dB]: 40 – 165 Hz
Max SPL: 131 dB
LF: 12″
Voice Coil LF: 3″
Directivity: Omnidirectional
AMPLIFIER
Amp Technology: Digipro® G3
Amp Class: Class D
Power Supply: 700W SMPS with PSU Auto-range (110V~ and 220V~)
LF Amp: 700 W RMS (1400 W Peak)
Cooling: Convection
PROCESSOR
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
Controls: X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data)
Limiter: Dual active, RMS/Peak, Thermal
Crossover Frequency LF-HF: 90 – 120 Hz
LF X-over out slope: 24 dB/Octave
INPUT
MECHANICS
Housing: Multiplex birch plywood – Polyurea painting
Handles: 1x left side, 1x right side
Feet: 4x Dual Position Reversable Feet (flying/stacking mode)
Fittings: M20 screw for pole mount on top side, integrated hardware with fast lock mechanics
Width: 460 mm (18.1 in)
Height: 430 mm (16.9 in)
Depth: 385 mm (15.2 in)
Weight: 26.5 kg (58.4 lbs)

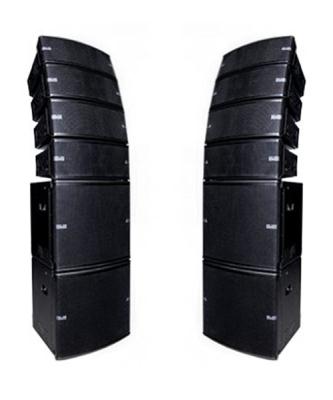

The dB Technologies M2M MS12 Package Large is exactly what you need if you are looking for mobile, light weight, mini line array that delivers more than you expect in both frequency ranges and volume. The dB Technologies M2M MS12 Package Large consists of: 4 x M2M line array cabinets 4 x MS12 bass bins
