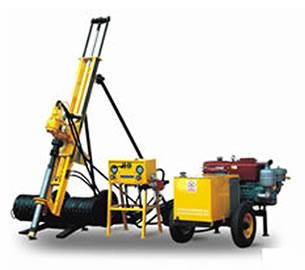

Borehole Water Drilling Machine Rig
Send an e-mail enquiry to Machinetech SA
85000 ZAR
HQJ100 Hydraulic Down Hole Drilling Set OPTION 2:
HQJ100 Hydraulic Down Hole Drilling Rig Complete
Machine Specs:
Suitable Rock Rigidity (f) 6-20
Bore Dia. (mm) 68-130
Pushing Length (mm) 1000
Rotation Speed (rpm) 0-70
Working Pressure (Mpa) 0.5-0.7
bar 5-7
Air Consumption(m3/min) 3.5-7.2
cfm 124-424
Max. Pushing Force (N) 4500
Max. Lifting Force (N) 15000
N.W (kg) Drill Part 260
Pumping Station 261
Control Station 50
Appendant 360
G.W (kg) Drill Part 4230
Pumping Station 330
Control Station 65
Appendant 362
Dimension Drill Part 2180 × 510 × 790
Dimension Pumping Station 1170 × 980 × 1050
(L × W × H) (mm) Control Station 700 × 500 × 900
The down hole drill is a new, highly efficient and extensively applied open-air rock drilling equipment, which is extensively suitable for small and medium sized mines and the projects such as communications, national defence, water conservancy and stonework, in particular the rough and rugged terrains and land forms where other drills are unable to operate normally. The machine can be used for water drilling and to drill blast holes on mines. It can also be used to drill under roads for cable lines. The specifications for the machine are listed below.
